Introduction
Every time you visit a website, send an email, watch a YouTube video, play an online game, or use a mobile app, a technology called DNS works behind the scenes to make it possible.
Most people never think about DNS because it operates automatically. However, without DNS, the internet would be extremely difficult to use.
Imagine having to remember numerical IP addresses for every website you visit.
Instead of typing:
google.com
you would need to remember:
142.250.190.14
Instead of typing:
youtube.com
you might need to remember a complex IP address.
For billions of websites, this would be impossible.
DNS solves this problem by acting as the internet’s phonebook.
It converts easy-to-remember domain names into machine-readable IP addresses, allowing computers and servers to communicate efficiently.
In this guide, you’ll learn:
- What DNS is
- Why DNS matters
- How DNS works

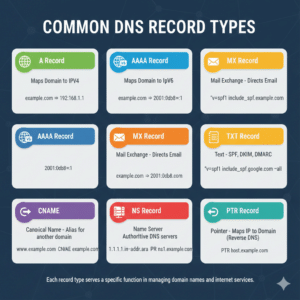

- DNS records explained
- Types of DNS servers
- DNS security risks
- DNS performance optimization
- DNS troubleshooting

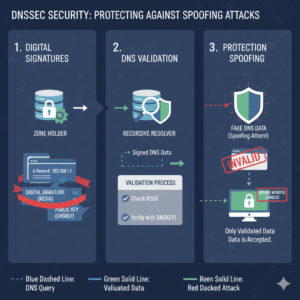

- DNSSEC and modern DNS security
By the end of this article, you’ll have a complete understanding of one of the most important technologies powering the modern internet.

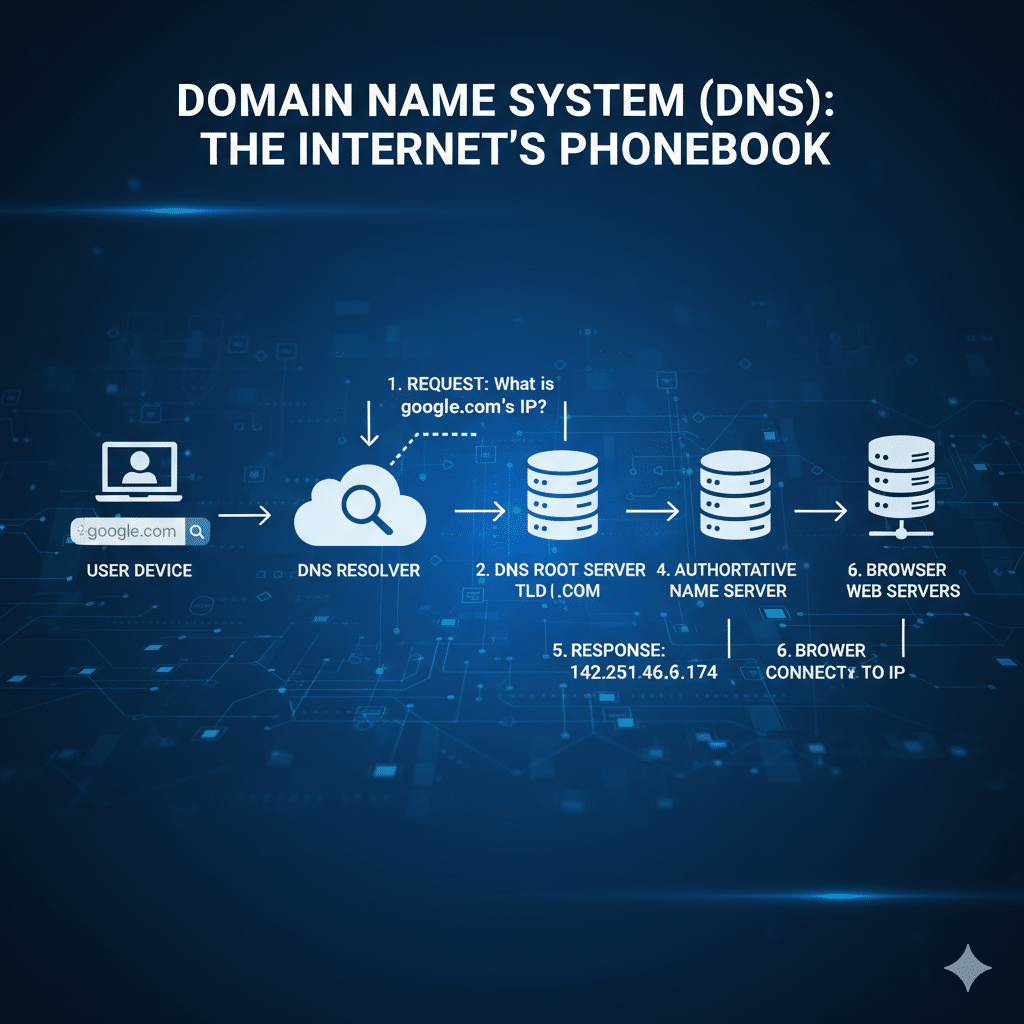

What Is DNS?
DNS stands for:
Domain Name System
“It is a distributed system that translates human-friendly domain names into what is an IP address computers use to identify one another on networks.”
For example:
google.com
becomes:
142.250.190.14
When you type a website address into your browser, DNS helps locate the correct server by providing its IP address.
Without DNS, web browsers would not know where websites are located.

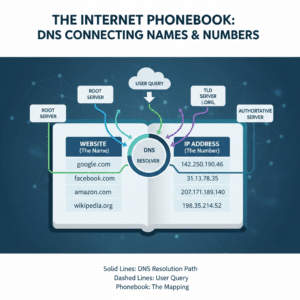

Simple Definition of DNS
DNS is often described as:
The Internet's Phonebook
Just as a phonebook matches names to phone numbers, DNS matches domain names to IP addresses.
Example:
| Domain Name | IP Address |
|---|---|
| google.com | 142.250.190.14 |
| youtube.com | 142.250.190.14 |
| cloudflare.com | 104.16.132.229 |
Humans prefer names.
Computers prefer numbers.
DNS acts as the translator between the two.
Real-World Analogy
Imagine you want to call a friend.
You know their name:
John Smith
but not their phone number.
You open your contacts and find the number.
DNS works exactly the same way.
Example:
google.com
↓
DNS Lookup
↓
142.250.190.14
↓
Website Loads
DNS allows users to access websites without memorizing complex IP addresses.
What Would Happen Without DNS?
Without DNS:
- Every website would require an IP address to be remembered.
- Website owners would struggle to change servers.
- Internet navigation would become difficult.
- Large-scale internet growth would be impossible.
Imagine remembering:
104.18.33.45
151.101.65.69
172.217.167.46
for every website you use daily.
DNS eliminates this problem entirely.
Why DNS Is Important
DNS is one of the foundational technologies of the internet.
Without DNS, modern internet services would not function efficiently.
Let’s explore why it is so important.
Makes the Internet Easy to Use
The biggest advantage of DNS is simplicity.
Users can remember:
facebook.com
amazon.com
youtube.com
instead of long numerical IP addresses.
This dramatically improves usability.
Supports Billions of Websites
There are hundreds of millions of active websites.
DNS allows each domain name to point to the correct server.
Examples:
rpacket.com
google.com
microsoft.com
amazon.com
Each domain can be linked to one or multiple IP addresses.
Allows Server Changes Without Affecting Users
Website owners often move websites between servers.
Example:
Old Server:
203.0.113.10
New Server:
198.51.100.20
Instead of telling millions of users about the change, the website owner simply updates DNS records.
Visitors continue using the same domain name.
Enables Load Balancing
Large websites receive millions of visitors.
DNS helps distribute traffic across multiple servers.
Example:
User
↓
DNS
↓
Server 1
User
↓
DNS
↓
Server 2
User
↓
DNS
↓
Server 3
This improves reliability and performance.
Improves Website Availability
Many organizations use multiple DNS servers.
If one server fails:
DNS Server A
❌
another can respond:
DNS Server B
✅
This redundancy keeps websites online.
Powers Email Delivery
DNS is not just for websites.
Email systems rely heavily on DNS.
Example:
user@gmail.com
DNS helps identify the correct mail servers responsible for receiving messages.
Without DNS, email would not function properly.
Supports Modern Internet Services
DNS powers:
- Websites
- Cloud Applications
- Video Streaming
- Mobile Apps
- Online Gaming
- API Services
- IoT Devices
Nearly every internet service relies on DNS.

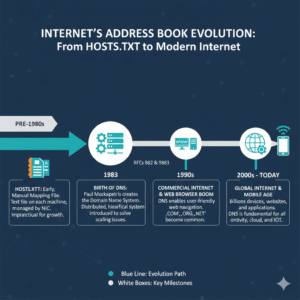

History of DNS
To understand DNS fully, it helps to examine its history.
The internet was much smaller when DNS was created.
Before DNS Existed
During the early days of networking, computers identified one another using a file called:
HOSTS.TXT
This file contained mappings between:
- Host names
- IP addresses
Example:
142.250.190.14 google
151.101.1.69 example
Every computer maintained a local copy.
Problems With HOSTS.TXT
As the internet grew, HOSTS.TXT became difficult to manage.
Challenges included:
- Constant updates
- Increasing number of hosts
- Synchronization problems
- Scalability limitations
The system could not support a rapidly growing internet.
Birth of DNS
In 1983, computer scientist:
Paul Mockapetris
proposed a new solution.
His design introduced:
Domain Name System
This decentralized approach eliminated the limitations of HOSTS.TXT.
Why DNS Was Revolutionary
DNS introduced several major innovations:
Distributed Architecture
No single server controlled the entire internet.
Scalability
Millions of domains could be supported.
Flexibility
Records could be updated dynamically.
Reliability
Multiple servers could provide redundancy.
These features allowed the internet to expand dramatically.
DNS Becomes the Internet Standard
Throughout the 1980s and 1990s, DNS became the standard naming system for the internet.
As websites, businesses, and internet users increased, DNS scaled to meet demand.
Today, DNS processes billions of queries every day.
Major organizations operating DNS infrastructure include:
- Cloudflare
- Amazon
- Microsoft
- ICANN
- Verisign
These companies help maintain the global DNS ecosystem.
DNS Today
Modern DNS has evolved far beyond simple name resolution.
Today’s DNS supports:
- Security enhancements
- Global load balancing
- Content delivery networks
- Cloud services
- Email routing
- Service discovery
Despite being developed decades ago, DNS remains one of the most important technologies powering the internet.
Every website visit begins with DNS, making it one of the first steps in almost every online interaction.

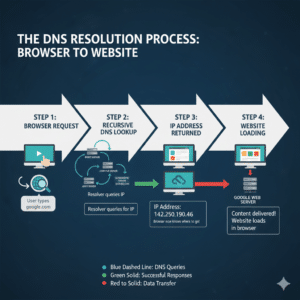

How DNS Works
At its core, DNS works by translating human-friendly domain names into IP addresses that computers can understand.
Whenever you type a website address into a browser, a complex process occurs behind the scenes within milliseconds.
Although the process may seem simple to users, multiple systems work together to locate the correct website.
Let’s break down exactly what happens.
A Simple DNS Example
Suppose you type:
www.google.com
into your browser.
Humans understand:
google.com
However, computers need something like:
142.250.190.14
DNS performs the translation.
Process:
User Types Domain
↓
DNS Lookup
↓
IP Address Found
↓
Browser Connects
↓
Website Loads
This entire process typically takes less than a second.
Why Browsers Need DNS
Web browsers communicate with servers using IP addresses.
Servers do not understand:
google.com
They understand:
142.250.190.14
DNS acts as a translator between human language and machine language.
Without DNS:
User
↓
No IP Address
↓
No Website Access
DNS makes internet navigation practical.
The Role of DNS in Every Website Visit
Every time you:
- Visit a website
- Open a mobile app
- Send an email
- Stream a video
- Play an online game
DNS is often involved.
For example:
youtube.com
requires DNS.
netflix.com
requires DNS.
amazon.com
requires DNS.
Billions of DNS lookups occur every day.
What Happens During a DNS Request?
When a user enters:
www.rpacket.com
the browser needs an IP address.
The request follows this path:
Browser
↓
Operating System
↓
DNS Resolver
↓
DNS Infrastructure
↓
IP Address Returned
↓
Website Loads
Each step plays an important role.

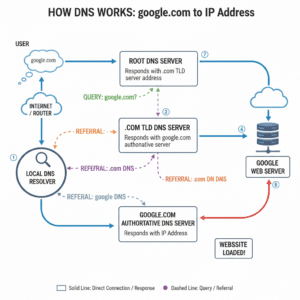

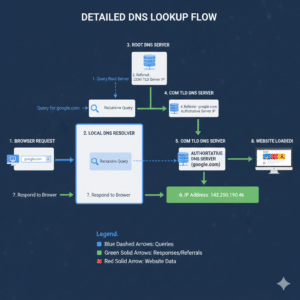

DNS Lookup Process
The DNS lookup process is the sequence of events that occurs when a domain name is converted into an IP address.
Understanding this process is one of the most important networking concepts.
Let’s examine it step by step.
Step 1: User Enters a Domain Name
The process begins when a user enters:
www.google.com
into a browser.
The browser immediately needs the website’s IP address.
Step 2: Browser Cache Check
Before contacting DNS servers, the browser checks its cache.
A cache is temporary storage.
Example:
google.com
↓
Previously Stored
↓
IP Found
If the address exists in cache:
DNS Lookup Skipped
This speeds up browsing.
Why Browser Caching Is Important
Caching reduces:
- DNS traffic
- Lookup times
- Network overhead
Benefits include:
- Faster websites
- Lower latency
- Improved user experience
Step 3: Operating System Cache Check
If the browser cache doesn’t contain the answer, the operating system checks its own DNS cache.
Examples:
Windows:
DNS Client Cache
Linux:
nscd or systemd-resolved
macOS:
mDNSResponder Cache
If the answer exists:
IP Returned Immediately

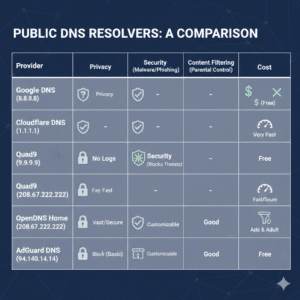

Step 4: DNS Resolver Query
If no local cache contains the answer, the request is sent to a DNS resolver.

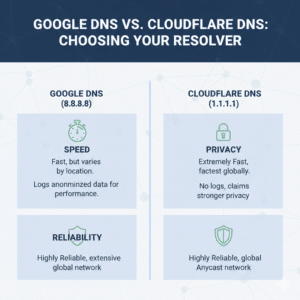

Examples:
Google DNS
8.8.8.8
Cloudflare DNS
1.1.1.1
Quad9 DNS
9.9.9.9
The resolver begins searching for the correct IP address.

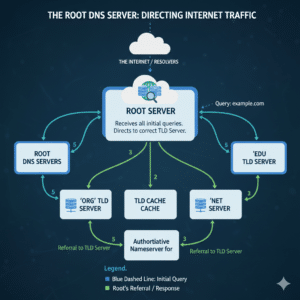

Step 5: Root Nameserver Query
The resolver contacts a Root Nameserver.
Root servers sit at the top of the DNS hierarchy.
Example request:
Where is google.com?
The root server replies:
Ask the .com TLD server
The root server does not know the final answer.
It simply points the resolver in the correct direction.
Step 6: TLD Nameserver Query
Next, the resolver contacts the:
.com
Top-Level Domain server.
The TLD server responds:
Ask Google's Authoritative Nameserver
Again, it doesn’t provide the final IP address.
It directs the resolver further down the DNS hierarchy.
Step 7: Authoritative Nameserver Query
The resolver contacts Google’s Authoritative Nameserver.
This server contains the actual DNS records.
Response:
google.com
=
142.250.190.14
The resolver finally obtains the answer.
Step 8: Response Returned
The resolver sends the IP address back to:
Operating System
↓
Browser
The browser can now connect to the website.
Step 9: Website Loads
The browser connects directly to:
142.250.190.14
The server responds with:
- HTML
- CSS
- Images
- JavaScript
The webpage appears.
Complete DNS Lookup Flow
User
↓
Browser Cache
↓
OS Cache
↓
DNS Resolver
↓
Root Server
↓
TLD Server
↓
Authoritative Server
↓
IP Address Found
↓
Website Loads
This process usually completes within milliseconds.

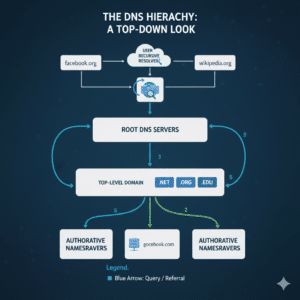

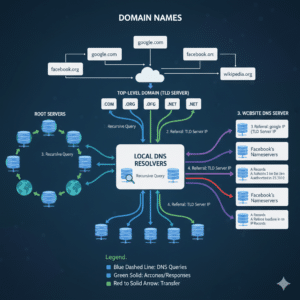

DNS Components
DNS is not a single server.
It is a distributed system consisting of several interconnected components.
Each component has a specific responsibility.
Understanding these components helps explain why DNS is scalable and reliable.
Domain Name
A domain name is the human-readable website address.
Examples:
google.com
amazon.com
rpacket.com
facebook.com
Domain names are what users type into browsers.
IP Address
DNS ultimately converts domain names into IP addresses.
Example:
google.com
↓
142.250.190.14
Without IP addresses, internet communication cannot occur.

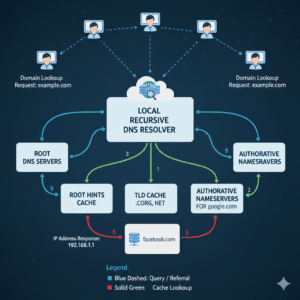

DNS Resolver
A resolver acts as the middleman between users and DNS servers.
Responsibilities:
- Receives DNS requests
- Searches DNS hierarchy
- Returns answers
- Caches results
Resolvers improve efficiency by reducing repeated lookups.
Root Nameserver
Root Nameservers represent the highest level of DNS.
Responsibilities:
- Direct queries to TLD servers
- Start the DNS resolution process
There are 13 logical root server systems operating globally.
Examples include:
A Root Server
B Root Server
C Root Server
through
M Root Server
These servers form the foundation of global DNS.
Top-Level Domain (TLD) Nameserver
TLD servers manage domain extensions.
Examples:
.com
.org
.net
.edu
.gov
Responsibilities:
- Direct queries toward authoritative servers
Example:
google.com
↓
.com TLD Server
↓
Google Authoritative Server
Authoritative Nameserver
The authoritative nameserver contains the actual DNS records.
Examples:
A Record
AAAA Record
MX Record
TXT Record
Responsibilities:
- Store domain information
- Provide final answers
- Manage DNS zones
Authoritative servers are the ultimate source of DNS truth.
DNS Zone
A DNS zone is a portion of the DNS namespace managed by an organization.
Example:
rpacket.com
may contain:
www.rpacket.com
mail.rpacket.com
blog.rpacket.com
api.rpacket.com
All managed within the same DNS zone.
DNS Cache
Caching is one of DNS’s most important performance features.
Cached results reduce:
- Lookup time
- Server load
- Network traffic
Without caching, DNS would be significantly slower.
Time To Live (TTL)
TTL determines how long DNS records remain cached.
Example:
TTL = 3600
means:
1 Hour
After expiration, a new lookup occurs.
DNS Hierarchy Overview
The DNS system follows a hierarchical structure:
Root Nameserver
↓
TLD Nameserver
↓
Authoritative Nameserver
↓
DNS Record
↓
IP Address
This hierarchy allows DNS to scale across the entire internet.
Why DNS Components Matter
Each DNS component plays a critical role in:
- Website accessibility
- Internet performance
- Scalability
- Reliability
- Security
Without this distributed architecture, the modern internet would not be capable of supporting billions of users and millions of websites.
DNS remains one of the most important systems ever developed for internet communication.
DNS Records Explained
DNS records are the instructions stored inside a domain’s DNS zone.
These records tell the internet how a domain should behave.
Think of DNS records as entries in a database that provide information about:
- Websites
- Email services
- Subdomains
- Security verification
- Server locations
- Domain ownership
Without DNS records, DNS would not know where to send visitors or email messages.
Every domain name contains one or more DNS records.
For example:
rpacket.com
may contain:
A Record
AAAA Record
MX Record
TXT Record
NS Record
CNAME Record
Each record serves a different purpose.
Why DNS Records Matter
DNS records help determine:
Which server hosts a website
Which mail server receives emails
Which services are connected to a domain
Which subdomains exist
Without DNS records:
Website Not Found
Email Not Delivered
Services Unavailable
would become common problems.
Where DNS Records Are Stored
DNS records are stored on:
Authoritative Nameservers
Examples include:
- Cloudflare DNS
- AWS Route 53
- Google Cloud DNS
- DigitalOcean DNS
- cPanel DNS Zone Editor
When someone performs a DNS lookup, the Authoritative Nameserver provides these records.
A Record
The A Record is the most important DNS record.
“A” stands for:
Address
Its purpose is to connect a domain name to an IPv4 address.
What Does an A Record Do?
Example:
rpacket.com
↓
A Record
↓
192.168.1.10
When a visitor enters:
rpacket.com
DNS returns:
192.168.1.10
allowing the browser to connect to the correct server.
Example A Record
| Type | Host | Value |
|---|---|---|
| A | @ | 192.168.1.10 |
Meaning:
rpacket.com
points to:
192.168.1.10
Real-World Usage
A Records are commonly used for:
- Websites
- Application Servers
- VPS Hosting
- Dedicated Servers
Almost every website on the internet uses at least one A Record.
AAAA Record
AAAA Records function similarly to A Records.” Add: “To understand the differences between IPv4 and IPv6 addressing systems, read our guide on IPv4 vs IPv6 .
However, they point to:
IPv6 Addresses
instead of IPv4 addresses.
Why Is It Called AAAA?
Historically:
A
represented IPv4.
When IPv6 was introduced:
AAAA
became the record type for IPv6 addresses.
Example AAAA Record
| Type | Host | Value |
|---|---|---|
| AAAA | @ | 2001:db8::1 |
Meaning:
rpacket.com
points to:
2001:db8::1
Real-World Usage
AAAA Records are used when:
- Websites support IPv6
- Applications support IPv6
- Organizations deploy dual-stack networking
Many modern websites use both:
A Record
and
AAAA Record
simultaneously.
Example
rpacket.com
may have:
A Record
192.168.1.10
AAAA Record
2001:db8::1
Visitors can connect using either protocol.
CNAME Record
CNAME stands for:
Canonical Name
A CNAME record creates an alias from one domain name to another.
Why Use CNAME?
Instead of pointing directly to an IP address, a domain can point to another domain.
Example:
blog.rpacket.com
↓
rpacket.com
Example CNAME Record
| Type | Host | Value |
|---|---|---|
| CNAME | blog | rpacket.com |
Meaning:
blog.rpacket.com
uses the same destination as:
rpacket.com
Benefits of CNAME
Benefits include:
- Easier management
- Reduced duplication
- Simpler DNS administration
If the target changes, only one record requires updating.
Common Uses
CNAME records are often used for:
- Blogs
- CDN integrations
- SaaS platforms
- Subdomains
Examples:
www.example.com
blog.example.com
shop.example.com
MX Record
MX stands for:
Mail Exchange
MX records tell email systems where messages should be delivered.
Without MX records:
Email Would Not Work
Example
Suppose someone sends an email to:
support@rpacket.com
DNS uses MX records to locate the correct mail server.
Example MX Record
| Type | Priority | Value |
|---|---|---|
| MX | 10 | mail.rpacket.com |
Meaning:
Emails
↓
mail.rpacket.com
Multiple MX Records
Organizations often configure multiple mail servers.
Example:
| Priority | Server |
|---|---|
| 10 | mail1.domain.com |
| 20 | mail2.domain.com |
If the primary server fails:
mail2.domain.com
handles incoming mail.
Popular MX Providers
Examples include:
- Google Workspace
- Microsoft 365
- Zoho Mail
- Proton Mail
All require MX records.
TXT Record
TXT stands for:
Text Record
TXT records store text-based information within DNS.
Originally designed for notes, TXT records now serve many important functions.
Common TXT Record Uses
TXT records support:
- Domain verification
- Email authentication
- Security policies
- Third-party integrations
Example TXT Record
| Type | Host | Value |
|---|---|---|
| TXT | @ | Verification Code |
Example:
google-site-verification=abc123
Why TXT Records Are Important
Modern email security depends heavily on TXT records.
Examples include:
- SPF
- DKIM
- DMARC
These help reduce:
- Spam
- Email spoofing
- Phishing attacks
NS Record
NS stands for:
Nameserver
NS records specify which DNS servers are authoritative for a domain.
Example NS Record
| Type | Value |
|---|---|
| NS | ns1.cloudflare.com |
| NS | ns2.cloudflare.com |
This means:
Cloudflare
manages DNS for the domain.
Why NS Records Matter
Without NS records:
DNS would not know:
Which DNS Server
Contains The Domain's Records
NS records form a critical part of DNS delegation.
Common Nameservers
Examples include:
ns1.cloudflare.com
ns2.cloudflare.com
ns1.digitalocean.com
ns2.digitalocean.com
ns1.hostinger.com
ns2.hostinger.com
PTR Record
PTR stands for:
Pointer Record
PTR records perform the opposite function of A Records.
Forward vs Reverse DNS
A Record:
Domain
↓
IP Address
PTR Record:
IP Address
↓
Domain
This process is called:
Reverse DNS
Example PTR Record
Forward Lookup:
rpacket.com
↓
192.168.1.10
Reverse Lookup:
192.168.1.10
↓
rpacket.com
Why PTR Records Matter
PTR records are commonly used for:
- Email server validation
- Spam prevention
- Network troubleshooting
- Security analysis
Many mail providers require proper PTR records before accepting email.
Example
Mail Server:
mail.rpacket.com
IP Address:
203.0.113.10
PTR Record:
203.0.113.10
↓
mail.rpacket.com
This helps verify legitimacy.
DNS Record Summary
| Record Type | Purpose |
|---|---|
| A | Maps Domain to IPv4 Address |
| AAAA | Maps Domain to IPv6 Address |
| CNAME | Creates Domain Alias |
| MX | Routes Email |
| TXT | Stores Verification and Security Data |
| NS | Defines Authoritative Nameservers |
| PTR | Performs Reverse DNS Lookups |
Why Understanding DNS Records Is Important
Whether you’re:
- A website owner
- A system administrator
- A developer
- A cybersecurity professional
- A cloud engineer
understanding DNS records is essential.
DNS records control how websites, emails, applications, and online services function.
Many common website and email issues can be traced back to incorrectly configured DNS records.
Mastering DNS records is one of the most valuable skills in networking and web hosting.
DNS Servers Explained
When people hear the term DNS, they often imagine a single server that converts domain names into IP addresses.
In reality, DNS is a massive distributed system consisting of thousands of servers working together across the globe.
Every DNS lookup relies on multiple types of DNS servers.
These servers form a hierarchy that allows the internet to scale efficiently while remaining reliable and fast.
Without DNS servers, users would not be able to access websites using domain names.
What Is a DNS Server?
A DNS server is a specialized server responsible for storing, processing, or providing DNS information.
Its primary job is to answer questions such as:
What is the IP address of google.com?
What mail server handles gmail.com?
Which nameserver manages rpacket.com?
DNS servers work together to provide these answers within milliseconds.
Why Multiple DNS Servers Are Needed
Imagine if every website lookup depended on a single server.
Problems would include:
- Slow performance
- Single points of failure
- Poor scalability
- Internet outages
Instead, DNS uses a distributed architecture.
Benefits include:
- Faster responses
- Better redundancy
- Higher reliability
- Global scalability
This architecture allows DNS to support billions of daily queries.
Types of DNS Servers
The DNS ecosystem contains four major server types:
Recursive Resolver
↓
Root Nameserver
↓
TLD Nameserver
↓
Authoritative Nameserver
Each server performs a different function.
Let’s examine them in detail.
Recursive Resolver
The Recursive Resolver is the first DNS server involved in most DNS lookups.
It acts as the middleman between users and the DNS infrastructure.
What Does a Recursive Resolver Do?
When a user enters:
www.rpacket.com
the resolver begins searching for the correct IP address.
Its responsibilities include:
- Receiving DNS requests
- Performing lookups
- Querying other DNS servers
- Returning answers
- Caching responses
The resolver does the hard work so users don’t have to.
Example DNS Query
User requests:
google.com
The resolver asks:
Root Server
↓
TLD Server
↓
Authoritative Server
Once the answer is found:
142.250.190.14
the resolver returns it to the user.
Why Recursive Resolvers Are Important
Resolvers significantly improve internet performance.
Benefits include:
- Reduced lookup times
- Lower network traffic
- Better scalability
- Faster browsing
Without recursive resolvers, every DNS lookup would require a full search through the DNS hierarchy.
DNS Caching
One of the resolver’s most important features is caching.
Suppose:
google.com
was recently requested.
The resolver stores the answer temporarily.
Future requests can be answered immediately.
Example:
First Request
↓
Full DNS Lookup
Second Request
↓
Cached Response
This dramatically improves speed.
Popular Recursive DNS Providers
Examples include:
Google Public DNS:
8.8.8.8
8.8.4.4
Cloudflare DNS:
1.1.1.1
1.0.0.1
Quad9:
9.9.9.9
OpenDNS:
208.67.222.222
208.67.220.220
Millions of users rely on these services daily.
Root Nameserver
The Root Nameserver sits at the top of the DNS hierarchy.
Think of it as the starting point of the entire DNS system.
What Does a Root Nameserver Do?
Root servers do not know the final IP address of every website.
Instead, they know where to find Top-Level Domain servers.
Example query:
Where is google.com?
Root server response:
Ask the .com TLD server
The resolver is directed to the next stage of the lookup process.
Why Root Servers Matter
Without root servers:
DNS Resolution
Would Not Begin
Root servers form the foundation of global DNS.
Every DNS lookup ultimately starts here.
The 13 Logical Root Servers
The internet contains:
13 Logical Root Server Systems
Named:
A Root Server
B Root Server
C Root Server
D Root Server
E Root Server
F Root Server
G Root Server
H Root Server
I Root Server
J Root Server
K Root Server
L Root Server
M Root Server
These are operated by organizations around the world.
Are There Really Only 13 Root Servers?
Technically:
No
Each root server system uses:
Anycast Technology
This allows hundreds of physical servers worldwide to share the same identity.
Benefits include:
- Faster responses
- Improved reliability
- DDoS resistance
- Global coverage
TLD Nameserver
TLD stands for:
Top-Level Domain
Examples include:
.com
.org
.net
.edu
.gov
.io
.ai
.co.uk
TLD servers manage information about domains within their specific extension.
What Does a TLD Server Do?
Suppose the resolver asks:
Where is google.com?
The .com TLD server replies:
Ask Google's Authoritative Nameserver
The TLD server doesn’t know the final IP address.
Instead, it directs the resolver toward the authoritative source.
Example TLD Lookup
Request:
rpacket.com
Process:
Root Server
↓
.com TLD Server
↓
Authoritative Server
The TLD server acts as a directory service.
Why TLD Servers Matter
Without TLD servers:
Resolvers
Would Not Know
Which Organization
Controls The Domain
They help organize the internet efficiently.
Popular TLD Categories
Generic TLDs:
.com
.net
.org
Country Code TLDs:
.in
.uk
.au
.ca
Specialized TLDs:
.tech
.store
.online
.ai
Each category relies on dedicated TLD infrastructure.
Authoritative Nameserver
The Authoritative Nameserver is the most important DNS server for a specific domain.
It contains the actual DNS records.
What Does an Authoritative Nameserver Do?
Suppose a resolver asks:
What is the IP address of rpacket.com?
The Authoritative Nameserver responds:
A Record
↓
192.168.1.10
This answer is considered the official source of truth.
Why Is It Called Authoritative?
Because it contains:
Official DNS Records
for the domain.
Examples include:
- A Records
- AAAA Records
- MX Records
- TXT Records
- CNAME Records
These records determine how the domain functions.
Example DNS Zone
Domain:
rpacket.com
May contain:
www.rpacket.com
blog.rpacket.com
mail.rpacket.com
api.rpacket.com
The authoritative server manages all of them.
Popular Authoritative DNS Providers
Examples include:
- Cloudflare DNS
- AWS Route 53
- Google Cloud DNS
- DigitalOcean DNS
- Azure DNS
These services manage DNS for millions of domains.
Public vs Private DNS
Many users encounter the terms:
Public DNS
and
Private DNS
Understanding the difference is important.
What Is Public DNS?
Public DNS servers are accessible by anyone on the internet.
Examples:
Google DNS:
8.8.8.8
8.8.4.4
Cloudflare DNS:
1.1.1.1
1.0.0.1
Quad9:
9.9.9.9
Anyone can configure their device to use these servers.
Advantages of Public DNS
Benefits include:
- Fast response times
- Global infrastructure
- High reliability
- Better uptime
- Improved privacy options
Many users switch from ISP DNS to Public DNS providers.
What Is Private DNS?
Private DNS servers are restricted to specific organizations or networks.
Examples:
Corporate Networks
Universities
Government Agencies
Large Enterprises
These DNS servers are not publicly accessible.
Example Private DNS Environment
Company Network:
Internal Website
↓
intranet.company.local
The public internet cannot access this domain.
Only employees connected to the corporate network can resolve it.
Advantages of Private DNS
Benefits include:
- Enhanced security
- Internal service discovery
- Better control
- Customized DNS policies
Large organizations often operate private DNS infrastructures.
Public DNS vs Private DNS Comparison
| Feature | Public DNS | Private DNS |
|---|---|---|
| Internet Accessible | Yes | No |
| Available To Everyone | Yes | No |
| Internal Resource Support | Limited | Yes |
| Custom Policies | Limited | Extensive |
| Common Users | General Public | Organizations |
How DNS Servers Work Together
When you visit a website, all DNS servers cooperate.
Example:
User
↓
Recursive Resolver
↓
Root Nameserver
↓
TLD Nameserver
↓
Authoritative Nameserver
↓
IP Address Found
↓
Website Loads
Each server contributes a piece of information.
Together, they make DNS one of the most scalable and reliable systems ever built.
Without this hierarchy, the modern internet could not support billions of users, millions of domains, and trillions of DNS queries every year.
How DNS Improves Internet Performance
Most people think DNS only translates domain names into IP addresses.
While that is its primary function, DNS also plays a major role in improving internet performance.
Modern DNS systems help make websites:
- Faster
- More reliable
- More scalable
- More responsive
Without DNS optimization, many websites would load significantly slower.
Faster Website Loading Through Caching
One of DNS’s most powerful features is:
Caching
When a DNS lookup occurs, the result is temporarily stored.
Example:
google.com
↓
142.250.190.14
Instead of repeating the same lookup every time, the cached result can be reused.
Process:
First Visit
↓
DNS Lookup Performed
Second Visit
↓
DNS Cache Used
Website Loads Faster
Benefits include:
- Lower latency
- Reduced DNS traffic
- Faster browsing
Reduced Network Congestion
Without caching:
Millions of Users
↓
Millions of DNS Requests
DNS infrastructure would become overloaded.
Caching dramatically reduces unnecessary requests.
This improves:
- DNS server efficiency
- Network performance
- User experience
Content Delivery Networks (CDNs)
DNS plays a critical role in Content Delivery Networks.
Examples include:
- Cloudflare
- Akamai
- Fastly
- Amazon CloudFront
CDNs use DNS to direct users to the nearest server.
Example:
User in India:
User
↓
Nearest Mumbai Server
Instead of:
User
↓
Server In USA
Benefits include:
- Faster page loads
- Lower latency
- Better streaming performance
Load Balancing
Large websites often use multiple servers.
DNS helps distribute traffic.
Example:
Visitor 1
↓
Server A
Visitor 2
↓
Server B
Visitor 3
↓
Server C
Benefits:
- Better reliability
- Improved performance
- Reduced server overload
Geographic Routing
DNS can direct users based on location.
Example:
India User
↓
Indian Server
UK User
↓
UK Server
US User
↓
US Server
This reduces travel distance for data.
Result:
Faster Website Experience
High Availability
Modern DNS providers operate global infrastructures.
Examples:
- Cloudflare
- AWS Route 53
If one DNS server fails:
Server A
❌
Traffic automatically moves to:
Server B
✅
This improves uptime.
Why Fast DNS Matters
Even a small DNS delay affects website performance.
Example:
Slow DNS:
300ms Lookup
+
Page Load
Fast DNS:
20ms Lookup
+
Page Load
The difference becomes noticeable across millions of visitors.
Common DNS Problems
Although DNS is highly reliable, problems occasionally occur.
Understanding these issues helps with troubleshooting.
DNS Server Not Responding
One of the most common errors is:
DNS Server Not Responding
This means the device cannot communicate with the configured DNS server.
Symptoms
Users may see:
- Websites won’t load
- Internet appears unavailable
- Browser errors
Examples:
DNS_PROBE_FINISHED_NXDOMAIN
DNS Server Not Responding
This Site Can't Be Reached
Causes
Common causes include:
- ISP DNS outage
- Router issues
- Firewall restrictions
- Network problems
Solutions
Try:
Restart Router
Change DNS Server
Flush DNS Cache
Restart Device
Incorrect DNS Records
Website owners often encounter DNS configuration errors.
Examples:
Incorrect A Record
Broken CNAME
Wrong MX Record
Symptoms
- Website unavailable
- Email delivery failure
- Subdomain issues
Example
Incorrect A Record:
rpacket.com
↓
Wrong IP Address
Visitors reach the wrong server or receive errors.
Solution
Verify records inside:
DNS Zone Manager
and update them correctly.
DNS Propagation Delays
After changing DNS records, updates do not occur instantly.
This process is called:
DNS Propagation
Why Propagation Happens
DNS caches exist worldwide.
Servers continue using old information until:
TTL
(Time To Live)
expires.
Typical Propagation Times
| TTL Value | Approximate Delay |
|---|---|
| 300 | 5 Minutes |
| 3600 | 1 Hour |
| 86400 | 24 Hours |
Some changes appear immediately while others take longer.
DNS Cache Problems
Sometimes devices continue using outdated DNS information.
Example:
Old Server IP
↓
Stored In Cache
Even after DNS updates, users may still reach the old server.
Solution
Flush DNS Cache.
Windows:
ipconfig /flushdns
Linux:
sudo systemd-resolve --flush-caches
macOS:
sudo dscacheutil -flushcache
DNS Hijacking
DNS hijacking occurs when attackers modify DNS settings.
Goals include:
- Redirecting users
- Stealing credentials
- Displaying malicious websites
Example Attack
User enters:
bank.com
Expected:
Real Bank Website
Actual:
Fake Phishing Website
Prevention
Use:
- Secure routers
- Trusted DNS providers
- DNSSEC
- Strong passwords
How to Change DNS Settings
Many users switch DNS providers for:
- Faster performance
- Better privacy
- Improved security
The process is relatively simple.
Windows
Open:
Control Panel
↓
Network Settings
↓
Adapter Settings
↓
IPv4 Properties
Enter preferred DNS servers.
Example:
8.8.8.8
8.8.4.4
macOS
Open:
System Settings
↓
Network
↓
Wi-Fi
↓
DNS
Add preferred DNS servers.
Android
Open:
Settings
↓
Network & Internet
↓
Private DNS
Enter provider hostname.
Example:
dns.google
iPhone (iOS)
Open:
Settings
↓
Wi-Fi
↓
Current Network
↓
Configure DNS
Choose:
Manual
and enter DNS servers.
Router Level Configuration
Changing DNS on a router affects all connected devices.
Example:
Router
↓
Google DNS
Every device automatically uses the configured DNS provider.
Benefits include:
- Centralized management
- Consistent configuration
- Easier administration
Best DNS Servers
Choosing a quality DNS provider can improve speed, security, and privacy.
Below are some of the most popular options.
Google Public DNS
Primary:
8.8.8.8
Secondary:
8.8.4.4
Benefits:
- Fast
- Reliable
- Global infrastructure
- Excellent uptime
Cloudflare DNS
Primary:
1.1.1.1
Secondary:
1.0.0.1
Benefits:
- Privacy focused
- Very fast response times
- Strong performance worldwide
Quad9
Primary:
9.9.9.9
Secondary:
149.112.112.112
Benefits:
- Security filtering
- Malware blocking
- Privacy focused
OpenDNS
Primary:
208.67.222.222
Secondary:
208.67.220.220
Benefits:
- Parental controls
- Content filtering
- Enterprise features
AdGuard DNS
Primary:
94.140.14.14
Secondary:
94.140.15.15
Benefits:
- Ad blocking
- Tracking protection
- Privacy enhancements
Google DNS vs Cloudflare DNS
Two of the most popular DNS providers are Google DNS and Cloudflare DNS.
Let’s compare them.
Google DNS Overview
DNS Servers:
8.8.8.8
8.8.4.4
Strengths:
- Massive infrastructure
- Excellent uptime
- Global availability
- Reliable performance
Google DNS is widely used by consumers and enterprises.
Cloudflare DNS Overview
DNS Servers:
1.1.1.1
1.0.0.1
Strengths:
- Strong privacy policies
- Extremely fast response times
- Global Anycast network
- Modern infrastructure
Cloudflare is often considered one of the fastest DNS providers.
Speed Comparison
In many benchmarks:
Cloudflare DNS
often delivers slightly faster response times.
However:
Google DNS
remains highly competitive.
Actual performance depends on:
- Location
- ISP
- Network conditions
Privacy Comparison
Cloudflare emphasizes privacy.
Features include:
- Limited logging
- Independent audits
Google DNS focuses more on performance and reliability.
Privacy-conscious users often prefer Cloudflare.
Feature Comparison
| Feature | Google DNS | Cloudflare DNS |
|---|---|---|
| Primary DNS | 8.8.8.8 | 1.1.1.1 |
| Secondary DNS | 8.8.4.4 | 1.0.0.1 |
| Speed | Excellent | Excellent |
| Privacy | Good | Excellent |
| Reliability | Excellent | Excellent |
| Global Coverage | Excellent | Excellent |
Which DNS Provider Should You Choose?
Choose Google DNS if you want:
- Reliability
- Global infrastructure
- Consistent performance
Choose Cloudflare DNS if you prioritize:
- Privacy
- Speed
- Modern DNS features
Both are excellent choices for most users.
Why DNS Optimization Matters
A properly configured DNS setup can improve:
- Website speed
- Reliability
- Security
- User experience
Whether you’re a website owner, system administrator, or everyday internet user, understanding DNS performance and troubleshooting can help you create a faster and more reliable internet experience.
DNS Security Risks
DNS is one of the most important systems on the internet.
Unfortunately, its importance also makes it a popular target for cybercriminals.
Attackers often target DNS because compromising DNS can allow them to:
- Redirect users
- Steal credentials
- Distribute malware
- Spy on internet activity
- Launch large-scale cyberattacks
Understanding DNS security risks is essential for website owners, businesses, and internet users.
DNS Spoofing
DNS Spoofing occurs when attackers provide false DNS information.
Instead of receiving the correct IP address, users receive a malicious one.
Example:
Expected Result:
google.com
↓
142.250.190.14
Malicious Result:
google.com
↓
203.0.113.50
The user unknowingly visits a fake website.
DNS Cache Poisoning
DNS Cache Poisoning is a form of DNS spoofing.
Attackers insert fake DNS records into a DNS resolver’s cache.
Example:
Bank Website
↓
Fake DNS Record Stored
↓
Users Redirected To Attacker Site
This can affect thousands of users simultaneously.
DNS Hijacking
DNS Hijacking occurs when attackers change DNS settings.
Targets include:
- Routers
- Computers
- DNS Servers
- ISP Infrastructure
Example:
Router DNS
↓
Changed By Attacker
↓
All Devices Redirected
Victims may never realize they are visiting fraudulent websites.
DDoS Attacks Against DNS
DNS servers are common targets for:
Distributed Denial-of-Service (DDoS)
attacks.
Attackers flood DNS infrastructure with massive amounts of traffic.
Goal:
Overwhelm DNS Servers
↓
Prevent DNS Resolution
↓
Websites Become Unreachable
Large DNS providers invest heavily in DDoS protection.
DNS Amplification Attacks
Attackers can abuse DNS servers to amplify traffic.
Example:
Small Request
↓
Large DNS Response
↓
Victim Flooded With Traffic
This technique has been used in some of the largest DDoS attacks in history.
Domain Hijacking
Domain hijacking occurs when attackers gain control of a domain name.
Methods include:
- Stolen credentials
- Registrar compromise
- Social engineering
Example:
rpacket.com
↓
DNS Modified
↓
Visitors Sent Elsewhere
This can cause significant business damage.
Malware and DNS
Some malware modifies DNS settings.
Goals include:
- Blocking security updates
- Redirecting searches
- Delivering malicious advertisements
- Monitoring activity
Symptoms may include:
- Unexpected redirects
- Slow browsing
- Security warnings
How To Improve DNS Security
Best practices include:
✔ Use trusted DNS providers
✔ Enable DNSSEC
✔ Use strong passwords
✔ Enable two-factor authentication
✔ Monitor DNS changes
✔ Keep routers updated
✔ Use DNS filtering when appropriate
What Is DNSSEC?
DNSSEC stands for:
Domain Name System Security Extensions
DNSSEC is a security technology designed to protect DNS from manipulation and forgery.
Its purpose is to verify that DNS responses are authentic.
Why DNSSEC Was Created
Traditional DNS was designed without built-in verification.
This means attackers can potentially forge DNS responses.
DNSSEC solves this problem by adding cryptographic validation.
How DNSSEC Works
DNSSEC uses:
Digital Signatures
to verify DNS data.
Process:
DNS Record
↓
Cryptographically Signed
↓
Resolver Verifies Signature
↓
Trusted Response
If the signature is invalid:
DNS Response Rejected
Benefits of DNSSEC
DNSSEC helps protect against:
- DNS Spoofing
- Cache Poisoning
- Data Manipulation
- Forged Responses
Benefits include:
- Greater trust
- Improved security
- Better DNS integrity
What DNSSEC Does Not Protect Against
DNSSEC is powerful but has limitations.
It does not:
- Encrypt DNS traffic
- Stop DDoS attacks
- Prevent malware infections
DNSSEC focuses specifically on:
Authenticity
of DNS data.
DNSSEC Example
Without DNSSEC:
User
↓
Fake DNS Response
↓
Malicious Website
With DNSSEC:
User
↓
Signature Verification
↓
Fake Response Rejected
This significantly reduces DNS-based attacks.
Frequently Asked Questions
What does DNS stand for?
DNS stands for:
Domain Name System
What is DNS in simple terms?
DNS is the internet’s phonebook.
It converts domain names into IP addresses.
Why is DNS important?
DNS allows users to access websites using easy-to-remember names instead of numerical IP addresses.
What happens if DNS stops working?
Websites, email services, and many online applications may become inaccessible.
Is DNS required for every website?
Yes.
Virtually every website relies on DNS.
Who invented DNS?
DNS was invented by:
Paul Mockapetris
in 1983.
What is a DNS lookup?
A DNS lookup is the process of converting a domain name into an IP address.
What is a DNS server?
A DNS server stores, processes, or provides DNS information.
What is an A Record?
An A Record maps a domain name to an IPv4 address.
What is an AAAA Record?
An AAAA Record maps a domain name to an IPv6 address.
What is a CNAME Record?
A CNAME Record creates an alias for another domain.
What is an MX Record?
An MX Record identifies mail servers responsible for receiving email.
What is a TXT Record?
A TXT Record stores text information used for verification and security purposes.
What is a Nameserver?
A Nameserver manages DNS records for a domain.
What is DNS Propagation?
DNS Propagation is the time required for DNS changes to spread across the internet.
How long does DNS propagation take?
Typically:
A Few Minutes To 48 Hours
depending on caching and TTL values.
Which DNS server is fastest?
Popular fast DNS providers include:
- Cloudflare DNS
- Google DNS
- Quad9
Performance varies by location.
Is changing DNS safe?
Yes.
Using reputable DNS providers is generally safe.
Can DNS improve internet speed?
DNS can improve website lookup speed but does not directly increase download bandwidth.
What is Private DNS?
Private DNS refers to DNS infrastructure restricted to a specific organization or network.
What is Public DNS?
Public DNS servers are available for anyone to use.
Examples include Google DNS and Cloudflare DNS.
Is DNSSEC necessary?
DNSSEC is highly recommended because it helps protect against DNS spoofing and cache poisoning.
What is the difference between DNS and IP addresses?
DNS translates domain names into IP addresses.
IP addresses identify devices and servers on networks.
Does every domain have DNS records?
Yes.
Every functioning domain relies on DNS records.
Can I run my own DNS server?
Yes.
Organizations frequently operate their own DNS infrastructure.
However, doing so requires technical knowledge and maintenance.
Glossary of DNS Terms
| Term | Meaning |
|---|---|
| DNS | Domain Name System |
| Domain Name | Human-readable website address |
| IP Address | Numerical address used by devices |
| DNS Resolver | Performs DNS lookups |
| Root Server | Highest level of DNS hierarchy |
| TLD Server | Manages top-level domains |
| Authoritative Server | Stores official DNS records |
| A Record | Maps domain to IPv4 |
| AAAA Record | Maps domain to IPv6 |
| MX Record | Routes email |
| TXT Record | Stores text-based data |
| CNAME | Creates domain aliases |
| DNS Cache | Temporary DNS storage |
| TTL | Time To Live |
| DNSSEC | DNS Security Extensions |
Conclusion
DNS is one of the most critical technologies that powers the modern internet.
Every website visit, email delivery, cloud application request, streaming session, and online transaction depends on DNS working correctly.
Although most users never see DNS in action, it performs billions of lookups every day and serves as the bridge between human-friendly domain names and machine-readable IP addresses.
Throughout this guide, we’ve explored:
- What DNS is
- Why DNS matters
- How DNS works
- DNS lookup processes
- DNS records
- DNS server types
- DNS performance optimization
- DNS security risks
- DNSSEC protection
Understanding DNS is essential for:
- Website owners
- Developers
- Network administrators
- Cloud engineers
- Cybersecurity professionals
- IT students
As the internet continues evolving, DNS will remain one of the foundational technologies supporting global communication.
Key Takeaways
✔ DNS stands for Domain Name System.
✔ DNS translates domain names into IP addresses.
✔ DNS is often called the internet’s phonebook.
✔ DNS lookups involve resolvers, root servers, TLD servers, and authoritative servers.
✔ DNS records control websites, email, and online services.
✔ Common DNS records include A, AAAA, MX, TXT, CNAME, NS, and PTR.
✔ DNS caching improves performance and reduces latency.
✔ DNSSEC helps protect DNS from spoofing and manipulation.
✔ Public DNS providers include Google DNS, Cloudflare DNS, Quad9, and OpenDNS.
✔ Understanding DNS is essential for networking, web hosting, cloud computing, and cybersecurity.
